Free shipping

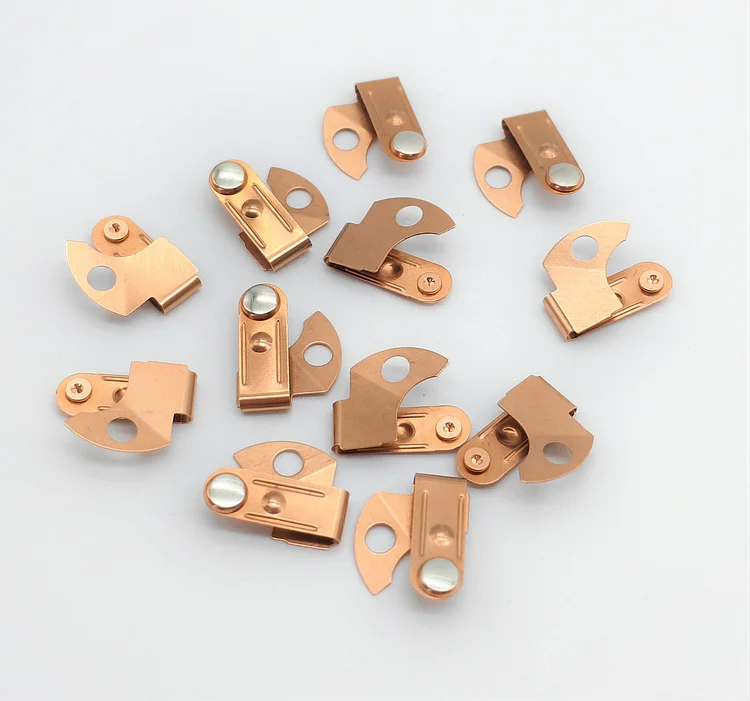

Customized phosphor bronze brass silver contact elastic thin plate stamping parts electrical contact

$0.06
Quantity
SKU: AOP02986-Size -Custom made
Description
Description

Type:Switch and socket accessories Material:Brass,Copper,Ag/Cu,AgNi/Cu,etc. Application:For switch &socket relay Voltage:As customer request Surface treatment:Clean ,smooth ,without burr and oil delivery time:Up to Order quantity Shipment ways:Express freight or by air or by sea Environment standard:ROHS Reach standard Inspection:From raw material to finished products Size:Customization

Type
Rivets, bimetallic, tri metal contacts, precious metal components
Product name
Bimetallic silver contacts, tri metallic silver contacts, stamped components
Size
Customized Size
Material
Ag/Cu, AgNi/Cu, AgSnO2/Cu, AgCdo/Cu, AgSnO2In2O3/Cu, AgZnO/Cu
Application
Switch outlet, Thermostats, Circuit Breakers,Elevator Switches,Relays
Surface Treatment
Clean and dry, free of oil, burrs, etc
OEM ODM
Welcome to inquire
Sample
Provide
Delivery Time
3-7 working days for inventory, 14-20 days for no inventory
Package
Inner layer: Vacuum plastic bag. Outer layer: cardboard box or according to your requirements
Raw material standard
Rohs approved
Quality standard
ISO9001:2015
Supply capacity
60000000 pieces per month
Unit: mm
Item
Head
Diameter
Head
Thickness
Shank
Diameter
Shank
Length
Spherical
Radius
Silver Layer
Thickness
(Head)
Silver Layer
Thickness
(Shank)
Angle
θ(°)
Size
2.2~8
0.8~1.5
1.5~6
1.2~2.7
6~20
0.3~1.1
0.4~1.2
7~11
tolerance
±0.1
±0.05
0
-0.08
+0.15
0
±0.2R
S≤0.4 +0.06
0
S>0.4 -0.06
0
±2
Head Diameter
3.0~4.5
>4.5~6.8
Coaxality Tolerance
≤0.12
≤0.15
Visual screening machine 2-dimensional measuring instrument Material testing machine
Measuring projector Measuring instrument Hardness tester
