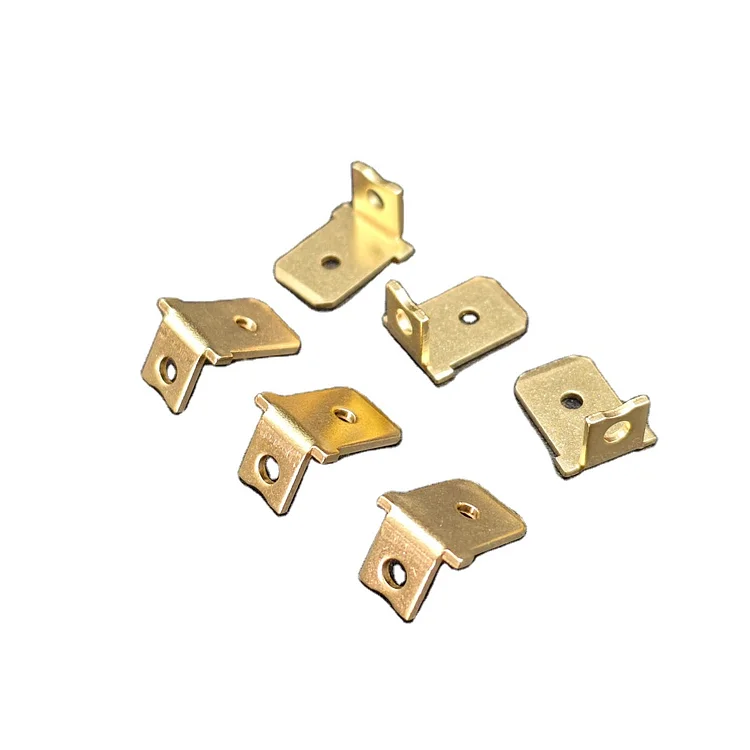

90 ° quick connect rivet thermostat accessory brass terminal stamping component
$0.12
$0.12
Save
Quantity
SKU: AOP02983-
SKU: ${data.sku}
Weight: ${data.weight}${data.weight_unit}
Description
Precision Industry Functional Application:Thermostat accessories Material:Brass,Copper,Ag/Cu,AgNi/Cu,etc. Application:Thermostat temperature controller Voltage:As customer request Surface treatment:Clean ,smooth ,without burr and oil delivery time:Up to Order quantity Shipment ways:Express freight or by air or by sea Environment standard:ROHS Reach standard Inspection:From raw material to finished products Size:Customization
|
Type
|
Rivets, bimetallic, tri metal contacts, precious metal components
|
|
Product name
|
Bimetallic silver contacts, tri metallic silver contacts, stamped components
|
|
Size
|
Customized Size
|
|
Material
|
Ag/Cu, AgNi/Cu, AgSnO2/Cu, AgCdo/Cu, AgSnO2In2O3/Cu, AgZnO/Cu
|
|
Application
|
Switch outlet, Thermostats, Circuit Breakers,Elevator Switches,Relays
|
|
Surface Treatment
|
Clean and dry, free of oil, burrs, etc
|
|
OEM ODM
|
Welcome to inquire
|
|
Sample
|
Provide
|
|
Delivery Time
|
3-7 working days for inventory, 14-20 days for no inventory
|
|
Package
|
Inner layer: Vacuum plastic bag. Outer layer: cardboard box or according to your requirements
|
|
Raw material standard
|
Rohs approved
|
|
Quality standard
|
ISO9001:2015
|
|
Supply capacity
|
60000000 pieces per month
|
|
Unit: mm
|
||||||||||||||||
|
Item
|
Head
Diameter |
Head
Thickness |
Shank
Diameter |
Shank
Length |
Spherical
Radius |
Silver Layer
Thickness (Head) |
Silver Layer
Thickness (Shank) |
Angle
θ(°) |
||||||||
|
Size
|
2.2~8
|
0.8~1.5
|
1.5~6
|
1.2~2.7
|
6~20
|
0.3~1.1
|
0.4~1.2
|
7~11
|
||||||||
|
tolerance
|
±0.1
|
±0.05
|
0
-0.08 |
+0.15
0 |
±0.2R
|
S≤0.4 +0.06
0 S>0.4 -0.06 0 |
±2
|
|||||||||
|
Head Diameter
|
3.0~4.5
|
>4.5~6.8
|
||||||||
|
Coaxality Tolerance
|
≤0.12
|
≤0.15
|
||||||||
Visual screening machine 2-dimensional measuring instrument Material testing machine
Measuring projector Measuring instrument Hardness tester
7.What will you do for after-sales service?
When our electrical contact components are suitable for your product, we will follow up and wait for your feedback. Our experienced engineers are always ready to assist you with any issues related to our metal parts.
8.Can I become an agent/distributor of the product?
Very welcome! I hope we can become long-term partners. If you need any other form of cooperation, please feel free to contact us at any time.
